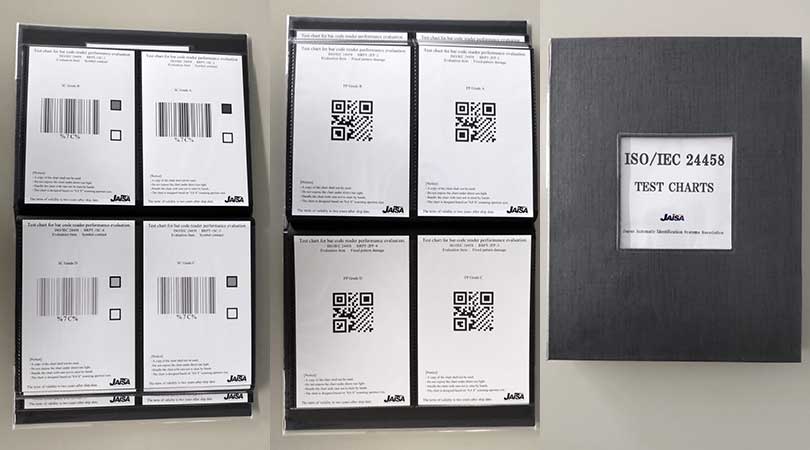

TEST CHART KIT for ISO/IEC 24458
Universal performance testing of bar code readers can be achieved!!
ISO/IEC 24458 “Information technology - Automatic identification and data capture techniques - bar code printer and bar code reader performance testing specification” was published on May 5, 2022, which is the first useful international standard that specifies how to evaluate performances of a bar code printer and a barcode reader. This standard also specifies test charts to be used for testing of a bar code reader.
Please adopt the new international standard and the test chart for evaluation of your products.
List of 64 testchats
| Chart number | Applicable test item |
|---|---|
| BRPT-1RES (8 X dimensions) | Reading range, reading angle, reading speed and reading moving symbol. |
| BRPT-1SC-1,-2,-3,-4,-5,-6,-7,-8 | Symbol contrust (4 each of bar density change and back ground density change) |
| BRPT-1MOD-1,-2,-3,-4 | Modulation |
| BRPT-1DEF-1,-2,-3,-4 | Defect |
| BRPT-1DEC-1,-2,-3,-4 | Decodability |
| Chart number | Applicable test item |
|---|---|
| BRPT-2RES (8 X dimensions) | Reading range, reading angle, reading speed and reading moving symbol. |
| BRPT-2SC-1,-2,-3,-4,-5,-6,-7,-8 | Symbol contrust (4 each of bar density change and back ground density change) |
| BRPT-2MOD-1,-2,-3,-4 | Modulation |
| BRPT-2FP-1,-2,-3,-4 | Fixed pattern damage |
| BRPT-2GNU-1,-2,-3,-4 | Grid non-unifomity |
| BRPT-2ANU-1,-2,-3,-4 | Axal non-unifomity |
| BRPT-2UEC-1,-2,-3,-4 | Unused error correction (UEC) |
Price
JP\ 877,000.- (without duty and shipping cost)
Order conditions
- ＊Payment
- : Advanced payment
- ＊Lead time
- : Within 3 months after receiving the payment
- ＊Life time
- : 2 years after delivery date
How to Order
Please fill and send back the Inquiry Form shown below. JAISA’s oficial distributor, TAMAPACK CO., LTD., will send a Quotation with confirmed shipping date.
